INAS 330是强固型设计的网络存储(NAS)平台,其目标是在恶劣环境下提供高性能,高可靠和大容量的数据存储。配备了独特的存储技术,能够在恶劣的环境中记录数据,如石油和天然气,交通运输,工业自动化等应用。
此外,提供了各种数据备份选项。远程复制功能支持目标单元到另一远程单元的数据备份,如FTP服务器和文件同步。通过集成Rsync协议,能够使关键数据始终保持一致。并且,还支持SMB/CIFS,NFS,和AFP协议的跨平台文件共享,如Windows,Mac和Linux/Unix。
INAS 330支持以太网供电(PoE/POE+)和遵循IEEE 802.3af/ IEEE 802.3at标准。具备双PoE+接口,可以支持电源冗余。此外,INAS 330可以用视频记录大量的系统,支持磁盘阵列RAID 5功能,还提供数据保护。INAS 330采用无风扇设计,散热性能好,防尘和防水保护的IP 54等级防护机箱。其密闭机壳,消除了因内嵌风扇原因引起的关键系统故障,保护内置设备。
硬件特点 | - Computer
- Processor: Dual Cortex®-A9 CPU - Storage: Up to 3 x 2.5" HDD/SSD (optional)
|
以太网 | - 2 x Gigabit LAN ports for data redundancy (M12)
- 1 x Gigabit LAN port for management (M12)
|
按钮 | - Reset button: Reboot System/Reset to factory default
|
LED指示 | - Power LED: power On/Off
- System LED: system status
- PoE/Temp LED: PoE/Temp status
- HDD LED: HDD1, HDD2,HDD3 (read/write/fail)
- LAN LED: 10/100/1000M x3 (link/activity)
|
电源需求 | - Input: PoE (IEEE 802.3af), or PoE + (IEEE 802.3at)
- Power redundancy
|
HS 控制 | |
机械构造 | - Fanless
- Housing: metal, IP 54 protection
- Mounting: wall mount (optional)
|
环境 | - Operating temperature:
-40°C ~ +70°C (-40°F ~ +158°F) For SSD -25°C ~ +55°C (-13°F ~ +131°F) For HDD - Storage temperature: -40°C ~ 85°C (-40°F ~ 176°F)
- Humidity: 5% - 95%, non-condensing
|
认证 | |
通过认证 | - EN50155 (railway applications)
- IEC61373 (vibrations & Shocks)
- EN60950; EN61000 (immunity, emission)
- EN60068-2-30/IEC68-2-30 (environmental testing)
|
包装内容 | - iNAS 330 unit x 1
- QIG x 1
- CD x 1
|
可选配件 | - Wall-mount-kit: 2 extra brackets and screws
- M12 cables: waterproof 8pin male M12 to RJ45 gigabit Ethernet cable, rated IP67
|
系统尺寸 | - 246mm (w) x 194mm (D) x 60mm (H) (9.69" x 7.64" x 2.36")
|
软件特点 | - OS: Atlas OS ™
- Web-based GUI (based on HTML5 and CSS3) - Centralized navigation panel and Dual-desktop system: Navigation Panel: For system configurations, with some toolkits on the toolbar - Home: for applications operations - Dashboard: For widgets exhibition - APPs
- Storage Manager - RAID management (JBOD, RAID1, RAID 5)/Auto RAID rebuilding - Data Vault - Log Book - Software Center - Widgets
- System Guardian - Network Surveillance - Configurations
- Files and permissions - Network and connectivity - System and devices - Toolkit
- Profile: account management - Real-time notification - System information - Network status
|
支持的客户端操作系统 | - Windows 7+, Windows Server 2003 R2, 2008, 2008 R2 & 2012 or later
- Linux & UNIX
- Mac OS X 10.7 or later
|
支持web浏览器 | - Mozilla Firefox
- Mac Safari
- Google Chrome
- Opera
|
网络 | - HTTP/H - SAMBA 2 (CIFS),Open SSL (TLS),FTP / FTPS
- HTTP 1.1 / HTTPS
- IPv4,Link Aggregation, DHCP,NTP,HTTP Authentication
- RESTful API
|

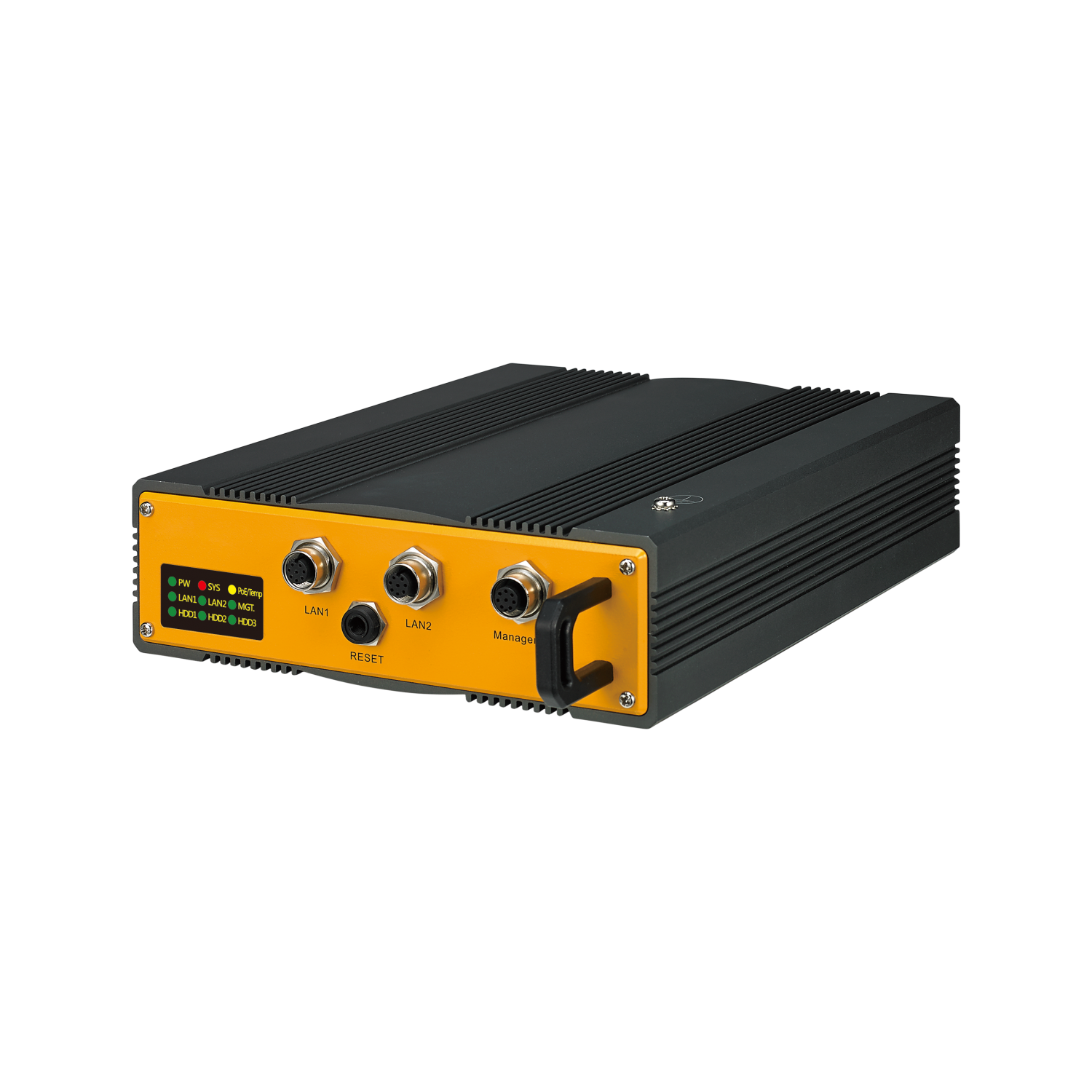

iNAS330
坚固耐用的设计行业存储(3年服务和维护)
