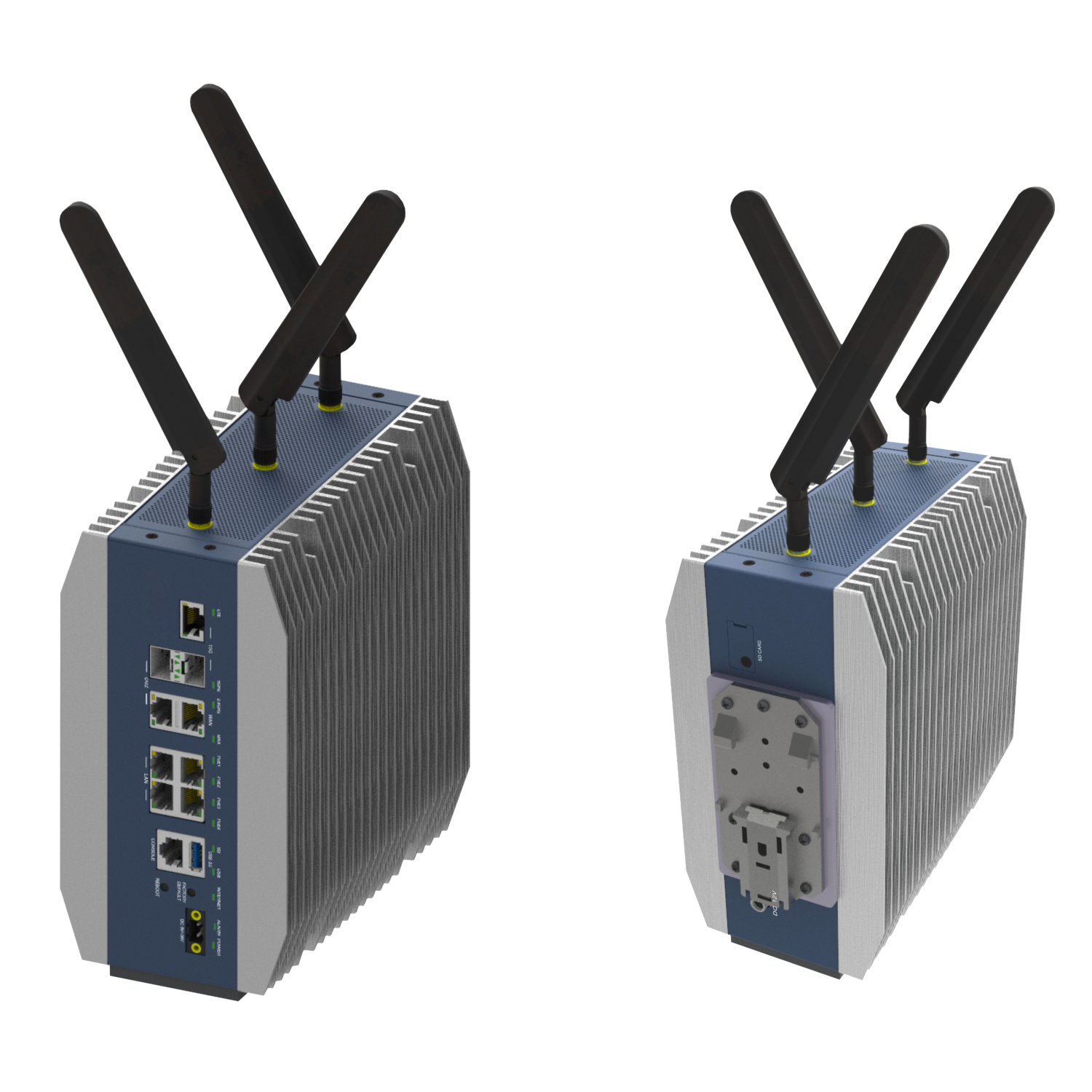

DNA 1520

    Cavium ARM64 多应用平台

    主要特点

    ● 基于ARMv8.1 64bit 架构的Cavium Octeon-TX CN80/81xx CPU

    ● 板载1GBytes SLC NAND flash. 可达2GBytes

    ● 板载1GBytes 64bit DDR4  和 8bit ECC 支持36/72bit 内存组合,可达2GBytes

    ● 支持802.3bz 10G 标准,可向后兼容到1/2.5/5Gbps

    ● 支持1对bypass功能

    ● 弹性的子版设计,支持不同的功能

    ● 双直流电源输入

    ● 无风扇机械结构设计


附件下载

  • 产品参数

    Cavium ARM64 多应用平台

    主要特点

    ● 基于ARMv8.1 64bit 架构的Cavium Octeon-TX CN80/81xx CPU

    ● 板载1GBytes SLC NAND flash. 可达2GBytes

    ● 板载1GBytes 64bit DDR4  和 8bit ECC 支持36/72bit 内存组合,可达2GBytes

    ● 支持802.3bz 10G 标准,可向后兼容到1/2.5/5Gbps

    ● 支持1对bypass功能

    ● 弹性的子版设计,支持不同的功能

    ● 双直流电源输入

    ● 无风扇机械结构设计


DNA 1520 是采用最新的Cavium ARMv8.1 64-bit SOC的高性能平台。可以支持Cavium Octeon-TX CN80xx,还支持CN81xx 系列CPU. 弹性的子板设计支持不同的功能,如Wi-Fi, 3G/LTE, PoE, 工业管理和存储。适用于以下应用平台。


- SDN 制导机
- 虚拟GW
- 虚拟CPE
- NAS
- 防火墙/IPS/防病毒
- VPN
- SMB 路由器
- IoT GW
- 工业管理
- 车载应用

CPU
  • Cavium Octeon-TX CN80xx/81xx Multicore
  • ARM64 ProcessorARMv8.1 64bit architecture
  • Hardware floating point, SIMD and MMU support
  • Hardware support for Virtualization
内存
  • On-board 128MB SPI Flash for system boot-up
  • On-board 1GBytes SLC NAND Flash. Upgradable to be up to 2GBytes
  • On-board 1GBytes 64bit DDR4 (4x128Mx16bit) and 8bit ECC. Supports 36/72bit memory           configurations with ECC. Upgradable to be up to 2GBytes
  • Another PCB version to support SO-DIMM for 4GBytes DDR4 and above
以太网
  • One 1Gb copper WAN (RJ45)
  • One 1Gb combo DMZ (RJ45+SFP plus)
  • One 10Gb combo WAN/DMZ/LAN (RJ45+SFP plus)
  • Four 1Gb copper LAN (RJ45)
  • Support bypass feature between WAN and LAN1
其他I/O
  • One USB 3.0 Host
  • One Micro SD Card reader with protective cover
  • One RJ45 console supports serial modem
指示灯和按钮
  • LEDs for Power, Alarm, WAN, DMZ, LAN(1~4), 10G, USB, SD, Internet,PoE (1~4), MAX              (PoE), 2.4GHz (Wi-Fi), 5GHz (Wi-Fi) and LTE
  • One reset to default button
  • One system reboot button
可选子板
  • Two Wi-Fi and one 3G/LTE:
          - Two PCIe slots for two half/full-size WiFi PCIe cards via PCIe signal
          - One PCIe slot for 3G/LTE module via USB signalPoE
          - Supports 4-port
  • PoE for up to 2-port 802.3at or 4-port 802.3af
  • Industrial management
          - RS232/485/422
          - Digital input/output
  • Storage
          - Share the same board-to-board interface as WiFi/LTE board. Only support either one at            the same time
          - Supports two SATA interfaces for two SATA SSD/HDDs
HW 显示器
  • Support HW monitor features via two thermocouples and ten voltages Sensors
电源输入
  • External AC to DC desktop power adapter
          - Power input: 100V ~240VAC
          - Power output: DC12V/65W (non-PoE). DC12V/150W (PoE)2-pin DC to DC power input
          - DC9V~36V
体积
  • 190 x 181.6 x 64mm
重量
  • 2.5kg
环境
  • Operation temperature: -20°C~70°C
  • Storage temperature: -40°C~85°C
  • Humidity: 5% to 95% maximum (Non-condensing)
认证
  • FCC class BULCE/CB

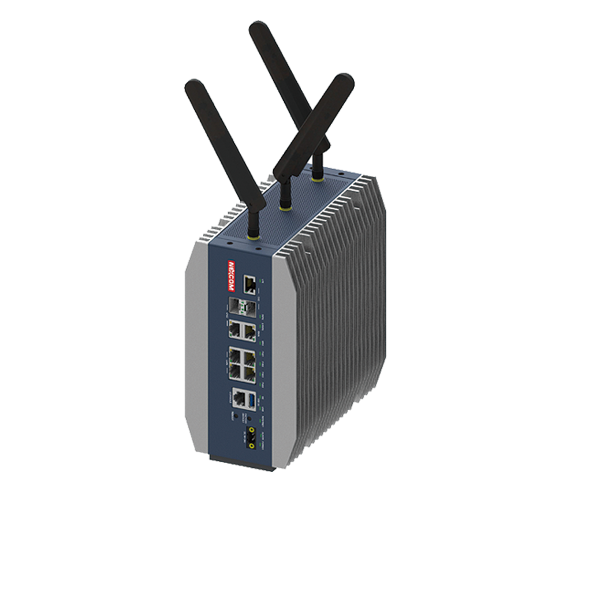

DNA 1520

Cavium Octeon-TX CN8120 2-core1.5GHz主系统
